Woodpecker Woodpex V Apex Locator
د.إ 750.00د.إ 900.00 (-17%)
KEY FEATURES:
-
Fifth-generation apex locator – Multi-frequency network impedance technology
-
4.5" bright LCD screen – Color-coded display (white/green/red bars) for file tip position
-
97.71% accuracy – Clinical data-verified precision
-
Rechargeable 750mAh battery – Cordless operation, no battery replacement needed
-
Folding display – Adjustable viewing angle for ergonomic use
-
Automatic calibration – Ensures accurate measurements without manual setup
-
DSP data processing – Removes interference for stable readings
-
Audible alerts – Piezoelectric buzzer signals when file approaches apex
-
Autoclavable accessories – File clips and lip hooks sterilizable to prevent cross-infection
-
Self-check circuit – Guarantees accuracy by adjusting program data beforehand
-
Compact & lightweight – Only 336g for comfortable handling
-
Endomotor compatible – Can integrate with Woodpecker E-Com endodontic motors
-
CE certified – Meets international safety standards
-
12-month warranty – Peace of mind for your practice
SPECIFICATIONS:
| Specification | Detail |
|---|---|
| Screen | 4.5" LCD |
| Weight | 336g |
| Dimensions | 84mm × 88mm × 112mm |
| Battery | 3.6V / 750mAh Li-ion (Model: 14500) |
| Power consumption | ≤0.5W |
| Adapter input | 100V-240V, 50/60Hz, 0.5-0.2A |
| Adapter output | DC5V/1A |
| Accuracy | 97.71% |
| Environment temp | +5°C to +40°C |
| Relative humidity | 30%–75% |
PACKAGE INCLUDES:
-
1 x Main unit
-
1 x Measuring wire
-
2 x File clip
-
2 x Lip hook
-
1 x Measuring file
-
1 x Adapter
-
1 x Tester
-
1 x Battery
-
1 x Instruction manual
-
1 x Qualified certificate
-
1 x Warranty card
-
1 x Packing list
CERTIFICATION & WARRANTY:
-
CE certified
-
12-month warranty
The Woodpecker Woodpex V Apex Locator is a fifth-generation electronic apex locator designed for precise root canal length measurement. Based on advanced multi-frequency network impedance measurement technology, the Woodpex V delivers accurate readings regardless of canal conditions—whether dry, wet, or containing blood or saline.

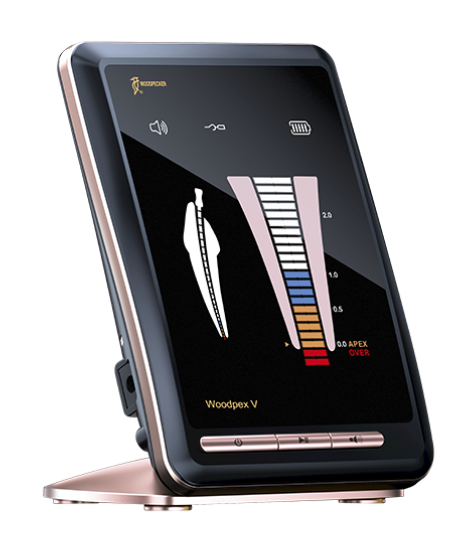

The device features a 4.5-inch bright LCD screen that displays the file tip position in real-time using clear color-coded indicators. As the file approaches the apex, white bars appear; near the apical foramen, green bars display; and if the file exceeds the foramen, red bars appear accompanied by a continuous audible alert .
Weighing just 336g and powered by a rechargeable 750mAh Li-ion battery, the Woodpex V offers excellent portability and cordless convenience for use across multiple operatories. The folding display allows easy angle adjustment for optimal viewing, while autoclavable accessories (file clips and lip hooks) help prevent cross-infection .
Key technical advantages:
-
DSP data processing – Removes interfering “noise” for cleaner signals
-
Automatic calibration – Ensures measurement accuracy without manual adjustment
-
High-precision components – American and Japanese chips for reliable performance
The Woodpex V can be directly integrated with compatible Woodpecker endodontic motors (such as the E-Com) for combined function. CE certified and backed by a 12-month warranty.
