Woodpecker Endo Radar Plus – Endo Motor with Apex Locator
د.إ 3,000.00د.إ 3,750.00 (-20%)
KEY FEATURES:
-
Cordless brushless motor – low noise, low vibration, long service life
-
3 operating modes: Motor only, Apex locator only, Combined
-
Speed range: 100–1200 rpm
-
Torque range: 0.4–5.0 N.cm
-
Reciprocating angle: 20°–400° (10° intervals)
-
6:1 mini contra-angle with 360° rotation
-
Integrated apex locator with real-time file tracking
-
Auto Start, Auto Stop, Apical Slowdown, Auto Reverse
-
Built-in library for popular NiTi file systems
-
Memory for up to 8 user-defined file types
-
High-resolution illuminated touch panel
-
Wireless inductive charging
-
Handpiece battery: 2000mAh Li-ion (8 hours autonomy)
-
Base battery: 2600mAh Li-ion pack
-
Stand-By mode after 3 minutes inactivity
-
Low noise level for patient & operator comfort
SPECIFICATIONS:
| Specification | Detail |
|---|---|
| Speed range | 100–1200 rpm |
| Torque range | 0.4–5.0 N.cm |
| Reciprocating angle | 20°–400° (10° increments) |
| Contra-angle ratio | 6:1 (Model: CA161) |
| Contra-angle rotation | 360° |
| Handpiece battery | 3.7V / 2000mAh Li-ion |
| Base battery | 11.1V / 2600mAh Li-ion pack |
| Handpiece autonomy | 8 hours |
| Wireless charging frequency | 112–205 KHz |
| Power adapter input | 100–240V, 50/60Hz, 800mA |
| Power adapter output | DC15V / 1.6A |
| Working environment | +5°C to +40°C, 30%–75% RH |
PACKAGE INCLUDES:
-
Motor handpiece with built-in battery
-
6:1 mini contra-angle (CA161)
-
Base unit with wireless charging
-
Power adapter
-
Measuring wire
-
File clips (4)
-
Lip hooks (2)
-
Touch probe (2)
-
Tester
-
Lubricator
-
USB wire
-
Protective silicon cover
-
Disposable insulation sleeves
-
Instruction manual
CERTIFICATION & WARRANTY:
-
CE certified
-
24 months for unit and handpiece, 12 months for contra-angle

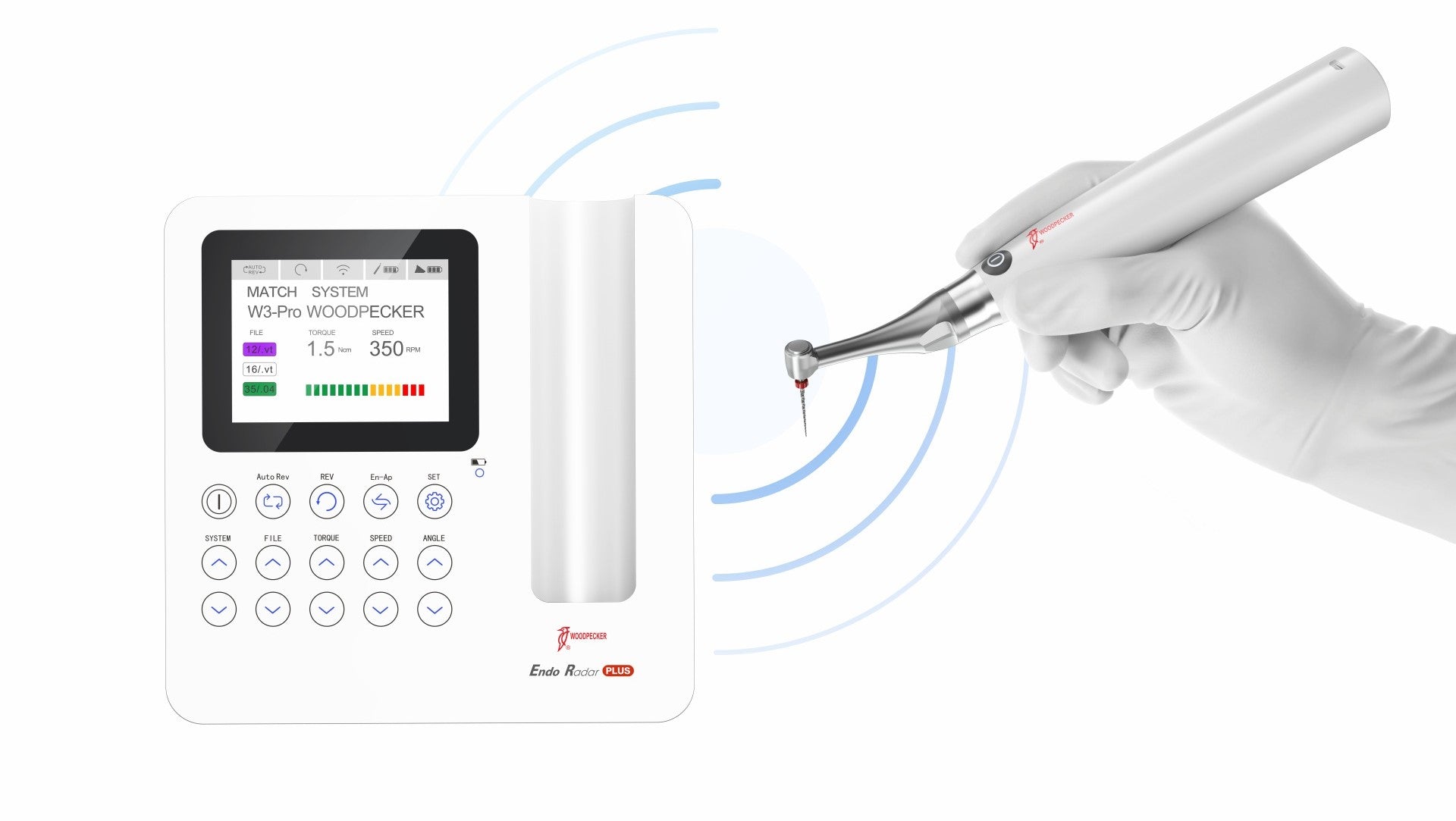

The Woodpecker Endo Radar Plus is a cordless endodontic micromotor with an integrated apex locator, designed for efficient root canal preparation and enlargement while simultaneously monitoring file tip position .
3 Operating Modes – The Endo Radar Plus can be used in three versatile modes: wireless endomotor alone, apex locator alone, or combined mode where both functions work simultaneously. For combined mode, simply connect the USB cable from the handpiece to the base unit .
Brushless Motor Technology – Featuring a high-performance brushless motor, the Endo Radar Plus delivers lower noise, reduced vibration, and a longer service life compared to traditional brush motors . The motor offers a speed range of 100–1200 rpm and torque from 0.4 to 5.0 N.cm .
Precise Reciprocating Control – The reciprocation function allows fine adjustment of angles from 20° to 400° in 10° increments, reducing the risk of instrument breakage during root canal preparation .

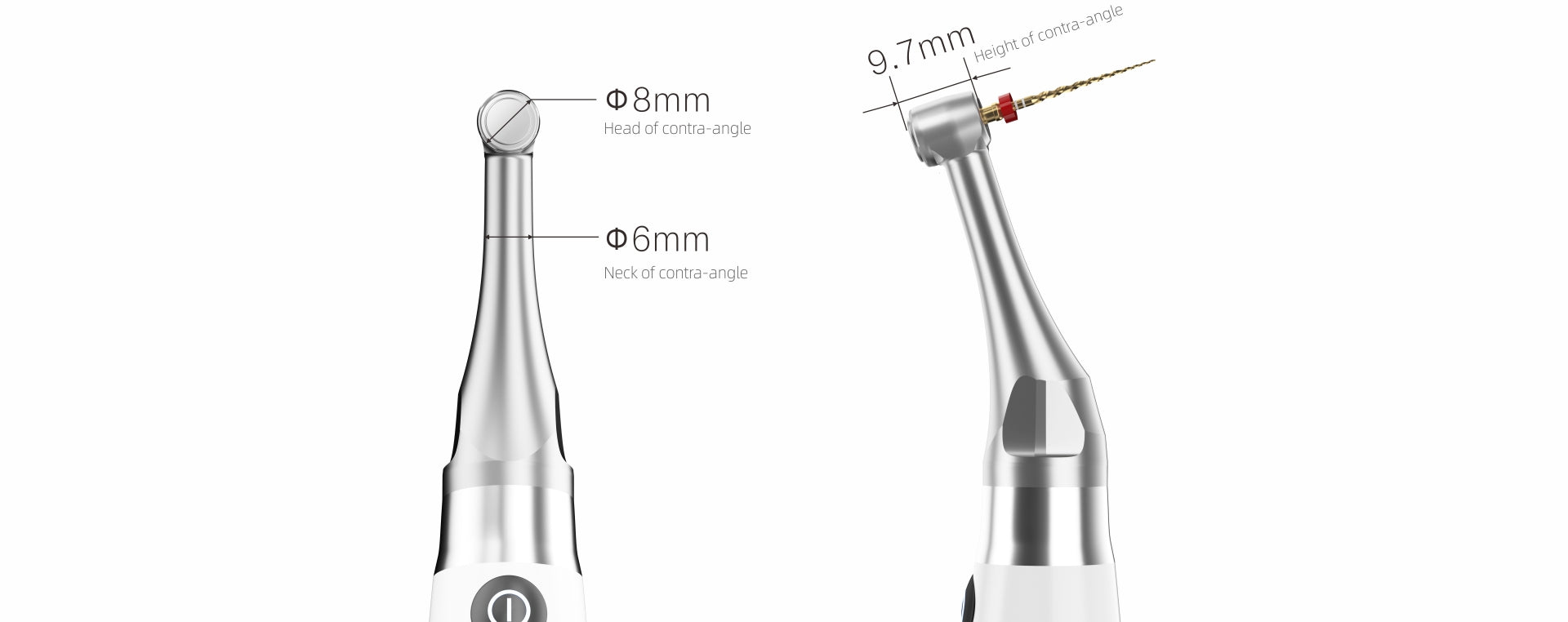

360° Rotatable Contra-Angle – The 6:1 mini contra-angle rotates 360°, providing excellent access to difficult areas and allowing comfortable screen viewing during operation .
Built-in Apex Locator – The integrated apex locator displays the file’s real-time position in the canal. It features multiple automatic functions including Auto Start (file rotates when inserted), Auto Stop (stops at apical point), Apical Slowdown, and Auto Reverse when approaching the apex .

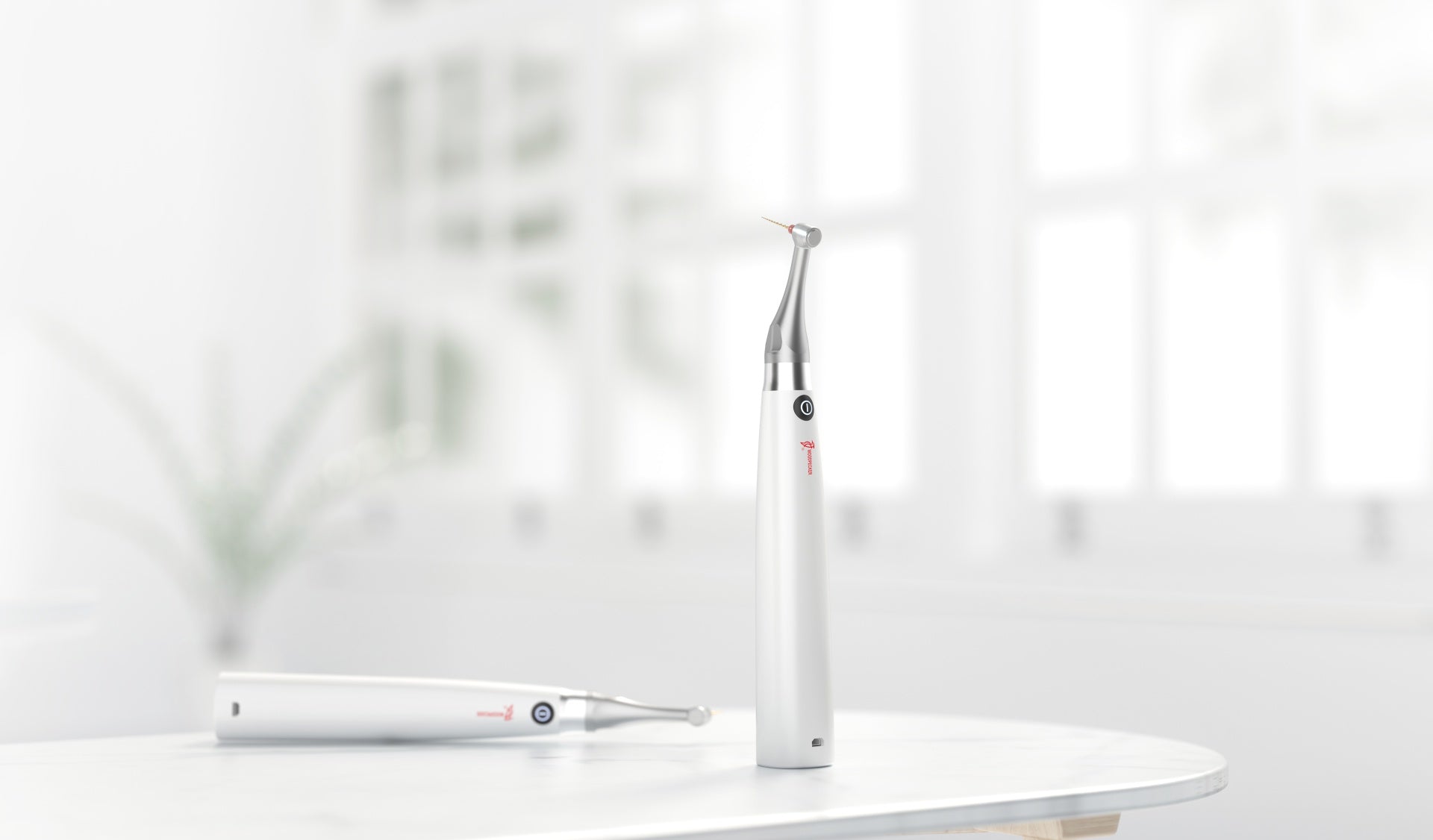

Cordless & Long Battery Life – The handpiece is powered by a 2000mAh Li-ion battery with 8 hours of autonomy, while the base contains a 2600mAh battery pack with wireless inductive charging . After 3 minutes of inactivity, the handpiece enters Stand-By mode to conserve power .
User-Friendly Design – The high-resolution touch control panel has an intuitive, easy-to-clean design with illuminated buttons. An internal library includes pre-sets for most known NiTi file brands, with memory for up to 8 user-defined file types
