Woodpecker Endo Free Cordless Endodontic Motor
د.إ 1,300.00د.إ 1,650.00 (-21%)
KEY FEATURES:
-
Cordless & brushless motor – 10x longer service life than brush motors
-
360° rotatable 6:1 mini contra-angle
-
Speed range: 100–1500 rpm
-
Torque range: 0.4–4.2 N·cm
-
4 working modes: CW, CCW, REC, ATR
-
Adjustable reciprocating angle: 20°–400° (10° intervals)
-
Apex locator compatible – real-time file tip monitoring
-
Automatic functions: Auto Start, Auto Stop, Apical Slow Down
-
OLED display – real-time parameter feedback
-
Low heat, low noise operation
-
30 built-in file system presets
-
Contra-angle head: 9.7mm height, 8mm diameter
-
Neck diameter: 6mm for broader field
SPECIFICATIONS:
| Specification | Detail |
|---|---|
| Handpiece weight (with contra-angle) | 106.8g / 107g |
| Speed range | 100–1500 rpm |
| Torque range | 0.4–4.2 N·cm |
| Battery capacity | 850mAh Li-ion (3.6V) |
| Contra-angle ratio | 6:1 mini |
| Contra-angle rotation | 360° |
| Reciprocating angle range | 20°–400° (10° interval) |
| Built-in file systems | 30 groups |
PACKAGE INCLUDES:
-
Endo Free handpiece
-
6:1 contra-angle
-
Charging base and power adapter
-
Silicone protective case
-
Measurement cable
-
Clip files
-
Spray nozzle
-
O-rings (2)
-
Adapters
-
Disposable insulation sleeves
-
Instruction manual & quality certificate
CERTIFICATION & WARRANTY:
-
CE certified
-
24 months for unit and handpiece, 12 months for contra-angle

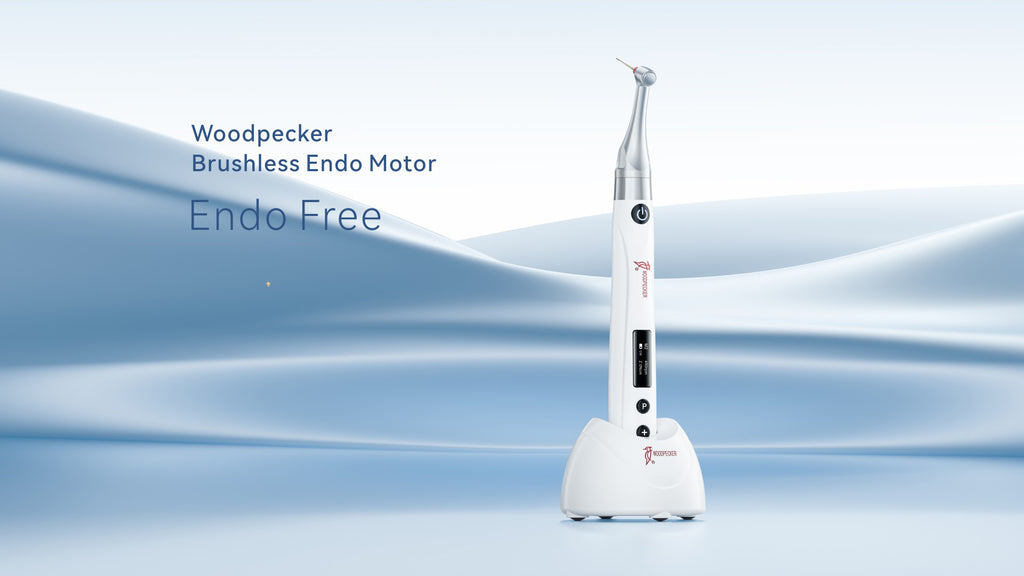

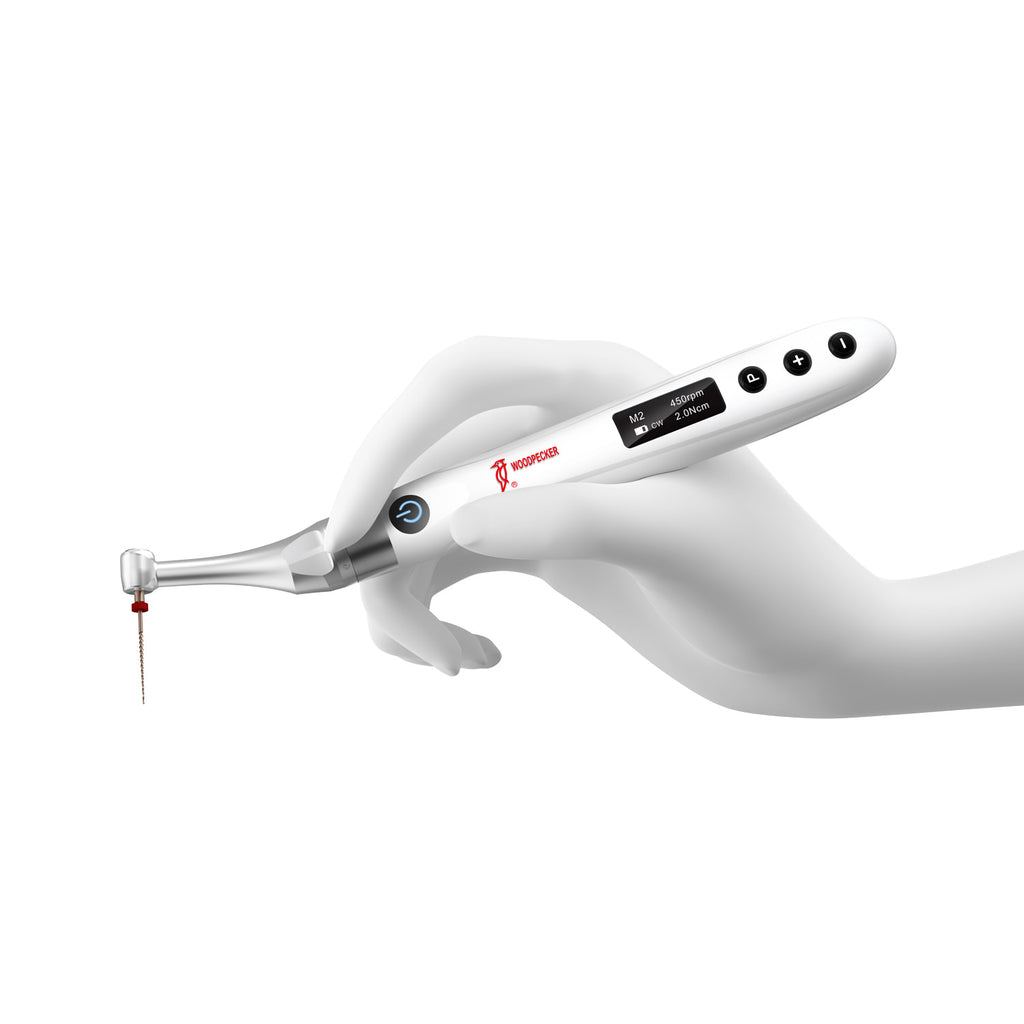

The Woodpecker Endo Free is a cordless, brushless endodontic motor designed for efficient root canal preparation and enlargement. With 360° rotation and a lightweight design, it is ideal for use with both rotary and reciprocating endo file systems .

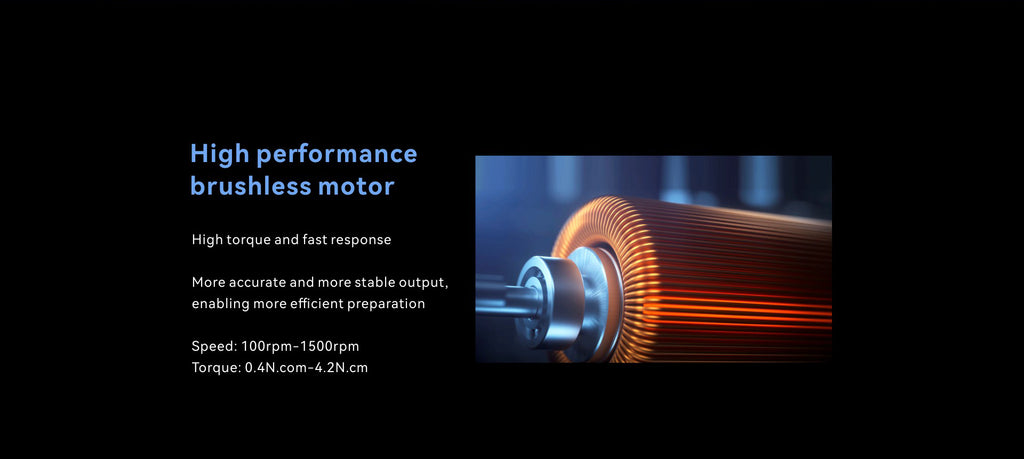

Brushless Motor Technology – The Endo Free features a premium brushless motor that delivers low heat, low noise, and a service life 10 times longer than traditional brush motors. This ensures stable power output and reduced maintenance over time .

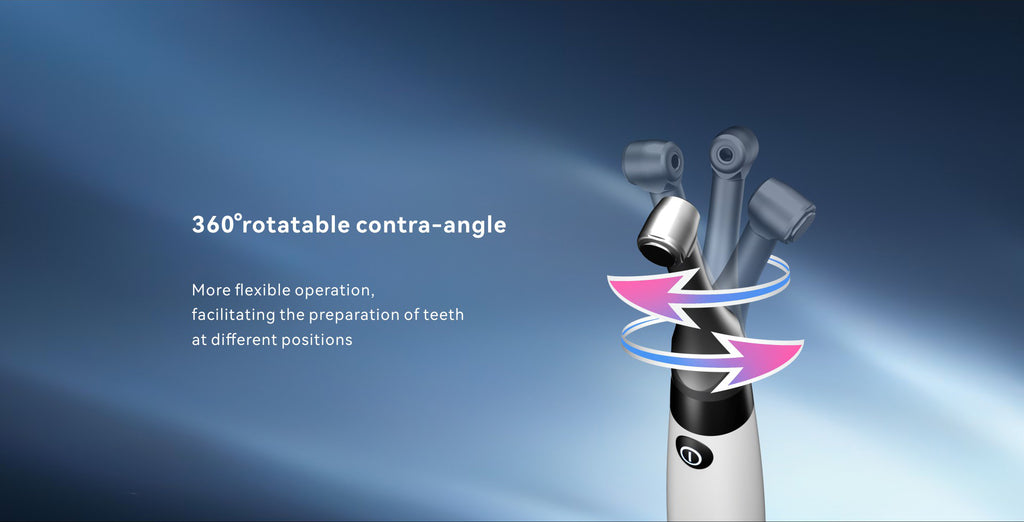

Flexible Operation – The 6:1 mini contra-angle rotates 360°, providing excellent visibility and access to teeth in different positions. The contra-angle head measures just 9.7mm in height and 8mm in diameter, with a 6mm neck diameter for a broader operational field .
4 Working Modes – The Endo Free offers four modes for versatile clinical applications:
-
CW (Forward Rotation Mode) – 360° clockwise rotation for canal shaping with rotary files
-
CCW (Reverse Rotation Mode) – Counterclockwise rotation for injecting calcium hydroxide
-
REC (Reciprocating Mode) – Alternating forward and reverse angles for efficient canal shaping
-
ATR (Adaptive Torque Reverse Mode) – Automatically switches to reciprocating motion when preset torque is reached, reducing the risk of instrument separation
Apex Locator Compatibility – When connected to a compatible apex locator (such as the Woodpex V), the Endo Free can monitor the file tip’s position inside the canal in real time. This enables automatic functions including Auto Start, Auto Stop, and Apical Slow Down for enhanced safety and precision .
Cordless & Portable – Powered by a rechargeable 850mAh lithium battery, the Endo Free offers cordless convenience for use across multiple operatories .
Warranty – 12 months for the unit, handpiece & contra-angle.
